Nose Cover prefinished

|

Last week, we prefinished both nose covers. They are a carbon fiber construction with embedded pinning positions for a seamless¬†aerodynamic fit. They will be attached to the nose with four „guiding arms“, two for each side of the nose. We already finished constructing and building the guiding arms. For the installation of the nose covers and the guiding arms it is necessary to assure that they can be fully opened and the nose covers closed seamlessly. They will be driven with two electrical servos.

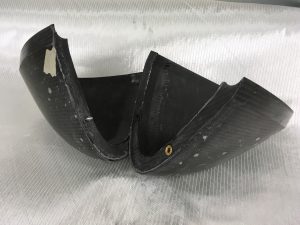

IMG_0148
The nose covers. One pinning position.

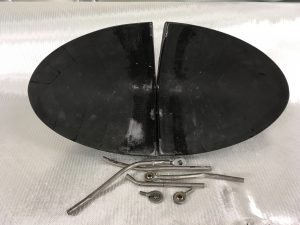

IMG_0153
Guiding arms and the nose covers.

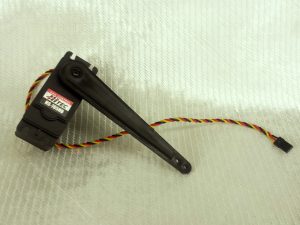

2016-06-14 20.27.47
An actuator will drive the nose covers.

.
